What is HyperX Aerospace Software?

HyperX is a commercial software product that  Automates Your Stress Analysis and Design

Aerospace analyses go from FEA to HyperX and design to CAD.

HyperX performs structural sizing, lightweighting, and margin writing using analytical aerospace methods. Starting with your FEA results, HyperX will optimally design your structure, including generating ply shapes for import into your CAD.

Let’s bring in your model and look at a single panel…

HyperX FEA analysis and Design

HyperX instantaneously sizes to get the lightest-weight design, for all panels, for all load cases, for all failure criteria, without having to resubmit the FEA

This allows you to quickly trade materials and panel concepts using general failure criteria

Quickly Trade materials using failure criteria.

and to simultaneously refine design details using specific analysis methods for each panel concept

Refine design with specific analysis methods.

as well as analyze and design panel joints

Analyze and design panel joints in HyperX.

As the design matures, HyperX will size the part as a manufacturable whole, not just each individual panel

HyperX sizes part as a manufacturable whole.

Throughout this process, HyperX maintains your inputs and outputs in a Database, which ensures consistency among your team.

HyperX maintains all inputs in a communal database shared within a team.

The HyperX Database becomes the “one source of truth” for sizing results and margins of safety, from Conceptual to Preliminary to Final Detailed Design

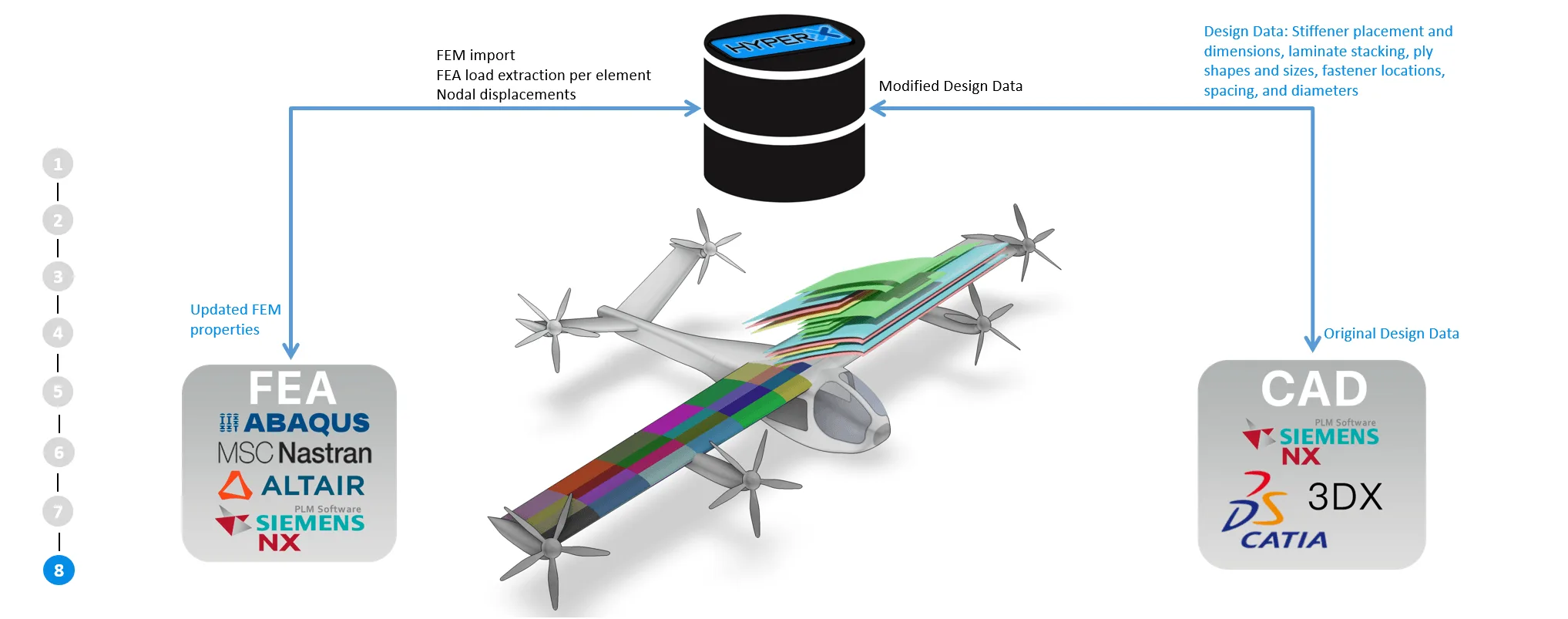

The HyperX Database is agnostic to your preferred FEA & CAD products, it standardizes and establishes the digital thread to Nastran, Abaqus, Optistruct, HyperMesh, Catia, 3DX, and NX CAD

HyperX produces digital thread for FEA and CAD sharing of data. Nastran, Abaqus etc. compatible.

HyperX is an essential part of the digital thread and the center of your airframe analysis and design sizing process

HyperX Logo Center Your Design.

Aerospace Structural Analysis and Design Optimization
